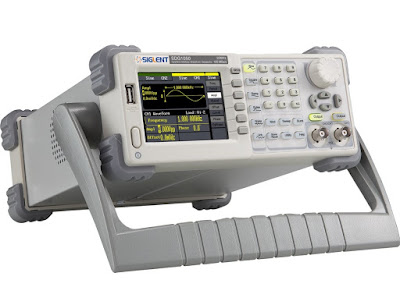

Siglent SDG1050 Arbitrary Function Generator
- Maximum output frequency of 50MHz
- 125MSa/s sample rate
- 14 bit vertical resolution
Siglent SDG1050 Arbitrary Function Generator Details
This device is the best model available in Siglent’s SDG1000 range and doubles the maximum output frequency of the closest model – the SDG1025 - from 25MHz up to 50MHz.
Like other models in the range this device is built with a full-colour LCD screen and all functions are clearly labelled and easily selected on the right hand side of the device.
Since the coloured screen is present and this device is a dual-channel function generator, the colour co-ordination of displayed waveforms helps with quick and easy identification.
The sample rate of the Siglent SDG1050 is 125MSa/s, it has wave length of 16kpts, frequency resolution of 1µHz and vertical resolution of 14 bits.
This device is capable of creating sine, square, pulse, ramp, Gaussian white noise and arbitrary waveforms. The ranges of the waves are:
- Sine Wave - 1µHz – 50MHz
- Square Wave - 1µHz –25MHz
- Pulse - 500µHz – 5MHZ
- Ramp – 1µHz – 300KHz
- Gaussian White Noise – 50MHz bandwidth (-3db)
- Arbitrary Wave - 1µHz – 5Mhz
- Ideal for use in IC testing, analogue sensor and simulated environment signals
- Maximum output frequency of 50MHz
- 125MSa/s sample rate
- 14 bit vertical resolution
- Double output
- Output 5 types of standard waveform and internally stored 48 waveform types
- Abundant moderation function
- Sweep frequency output
- Pulse train output
- USB Device, USB Host, Support for U Disk storage and software and optional GPIB port
- Designed to integrate seamlessly with SDS1000 handheld digital oscilloscopes
- Siglent SDG1050 Arbitrary Function Generator
- User Manual
- Certification
- Guarantee Card
- CD (Includes EasyWave 2.0 computer software)
- Power cord
- USB Cable
- Siglent SDG1050 Arbitrary Function Generator
- User Manual
- Certification
- Guarantee Card
- CD (Includes EasyWave 2.0 computer software)
- Power cord
- USB Cable
