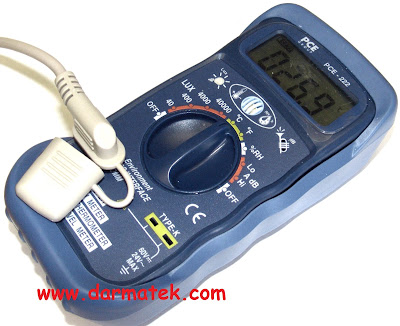

Digital Light/Lux meter PCE-222 Lux meter for environmental conditions ( internal sensors for measuring sound, light, temperature and relative humidity) with RS-232 interface and software.
The PCE-222 pocket-sized Lux meter is a multiuse device for measuring luminance, sounds levels up to 130dB ( able to measure A-weighting frequency curve adapted for audio psychology and can determine short sound bursts) , temperature and relative humidity. The software and the data cable of the contact Lux meter make it possible to generate graphs from the measurement data as well as save and print detailed results.
An ideal device for the education sector.
- Easy to use
- Integrated light, sound, temperature and relative humidity sensors
- RS-232 interface with optical insulation and Windows compatible software
- Large LCD and function display
- Auto shut-off
- Low battery indicator
- Includes software and RS-232 data cable, type-K temperature sensor and user' s manual Technical
Specifications :
Range of measurement:
- Light : 0.1 to 40, 000 lux
- Temperature :
-20 to 40° C ( internal sensor)
-20 to 750° C ( external sensor)
- Relative Humidity : 35 to 95% r.h.
- Sound : 35 to 130dB
Resolution
- Light : 0.1 lux
- Temperature : 0.1° C
- Relative humidity : 0.1% r.h.
- Sound : 0.5dB
Accuracy
- Light : ±5% / +10 dgt
- Temperature : ±3% / ± 2°C
- Relative humidity : ±5%
- Sound : ± 3.5dB
Display : LCD with function indicator
Interface : RS-232
Software : Windows 95, 98, 2000, XP and NT ( included)
Operating temperature : 0 to 50° C
Operating humidity : 20 to 95% r.h.
Power : 9V battery
Enclosure : ABS plastic
Dimensions : 121 mm x 61 mm x 40mm
Weight : 280g
Delivery Contents :
1 x PCE-222 Lux meter 1 x software 1 x external temperature sensor ( external wire) 1 x test cables ( for resistance) 1 x battery 1 x rubber cover 1 x user' s manual
