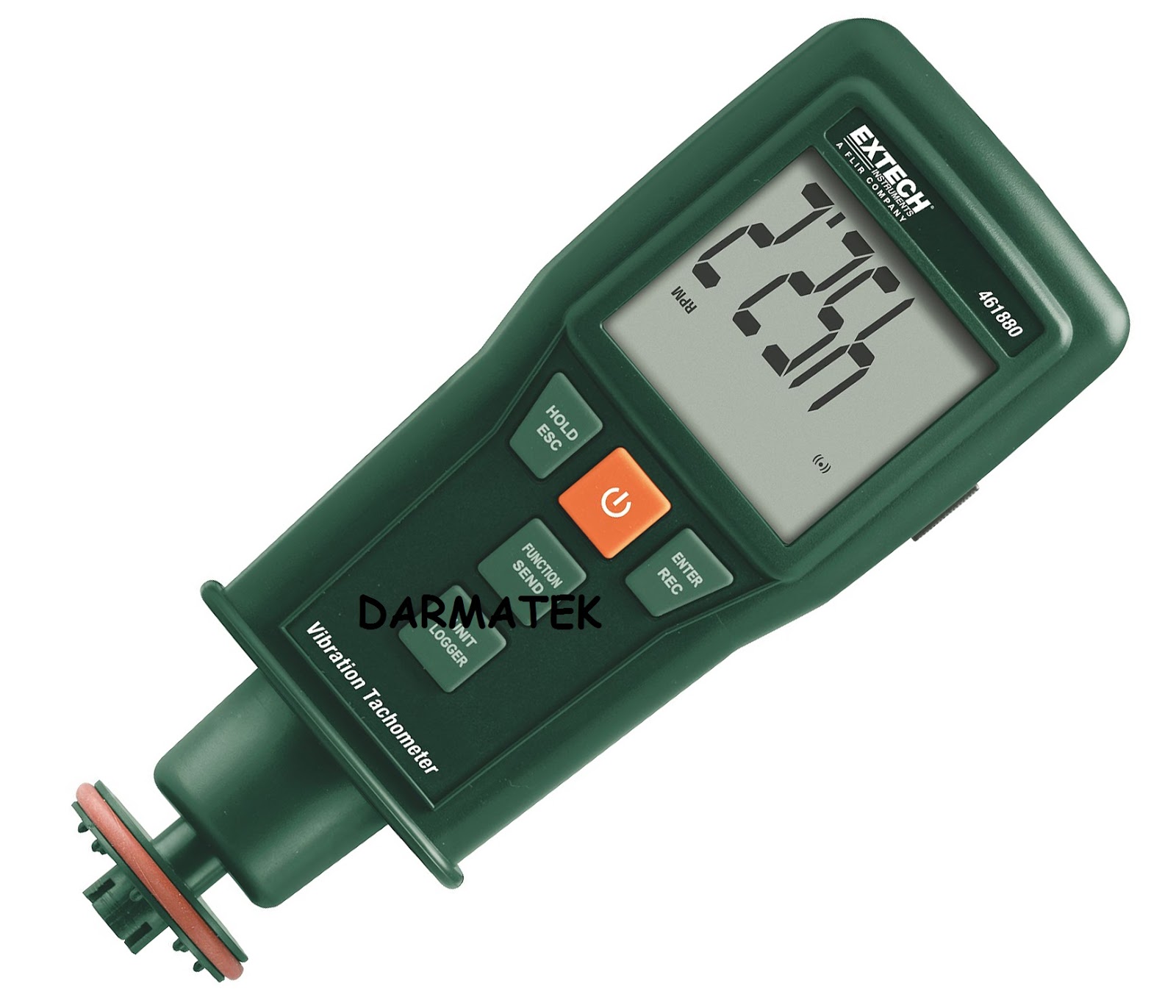

Extech 461880 Vibration Meter + Laser/Contact Tachometer
- Small and portable with durable outer shell
- Simple push-button interface and large LCD screen
- Extech software included and works with Windows computers
This Extech multifunctional testing device can be used to both gain a measure of vibration levels and can also measures the overall speed and velocity of a piece of machinery via the use of a built in laser tachometer.
The vibration meter function of the Extech 461880 includes a remote vibration sensor that's attached to a 39" (1m) cable. This mode can measure acceleration, velocity and displacement on various different systems types and is a quick and easy way to check that machinery isn't vibrating excessively and isn't causing damage to internal components.
The tachometer that is built into the Extech 461880 utilises a laser to make sure that measurements of overall RPM can be carried out at a distance (up to 4.9ft - or 1.5m) away from the targeted application. This mode can measure photo RPM to 99999rpm, contact rpm to 19999rpm and surface speed from 0.2 to 6550ft/min (0.05 to 1999.9m/min).
All of the functions of this unit are built into a portable, lightweight and handheld tester that's easy to use with just one hand and ideal for porting from test to test. The 461880 includes a large LCD screen with parameters able to be displayed in different directions and the unit also contains several other advanced features.
Extech 461880 Vibration Meter + Laser/Contact Tachometer Key Features
- Unique large LCD screen
- Acceleration, velocity and displacement measurements
- Photo, contact and surface speed measurements
- Compatible with included software package
- 39" cable with vibration sensor
- Wide frequency range from 10Hz to 1kHz
- RMS of Peak Value measurements mode
- Manual/auto store/recall of up to 1000 readings
- Data hold freezes the reading in the display
- Auto shut off saves battery life
- Built-in laser pointer for tachometer measurements
- Last, MAX and MIN storage
- Extech 461880 Vibration Meter + Laser/Contact Tachometer
- Remote Vibration Sensor
- Magnetic Mount
- Wheels for Linear Surface Speed or RPM (Cone Tip and Flat Tip)
- Reflective Tape
- 4 x AA Batteries
- Software with Cable
- Hard Carrying Case
| Vibration Meter | |
| Acceleration | 656ft/s2, 200m/s2, 20.39g (peak) |
| Velocity | 7.87in/s, 200mm/s, 19.99cm/s (peak) |
| Displacement | 0.078in, 2mm (peak-to-peak) |
| Resolution | 1ft/s2, 0.1m/s2, 0.01g; 0.01in/s, 0.1mm/s, 0.01cm/s; 0.001in, 0.001mm |
| Basic Accuracy | ±(5%+2 digits) |
| Tachometer | |
| Photo | 10 to 99,999rpm |
| Contact | 0.5 to 19,999rpmΩ |
| Surface Speed | 0.2 to 6,560ft/min (0.05 to 1,999.9m/min) |
| Basic Accuracy | ±(0.05%+1 digit) |
| General | |
| Dimensions | 7.4 x 3 x 1.8" (188 x 75.5 x 46.8mm) |
| Weight | 1.12lbs (507g) |
